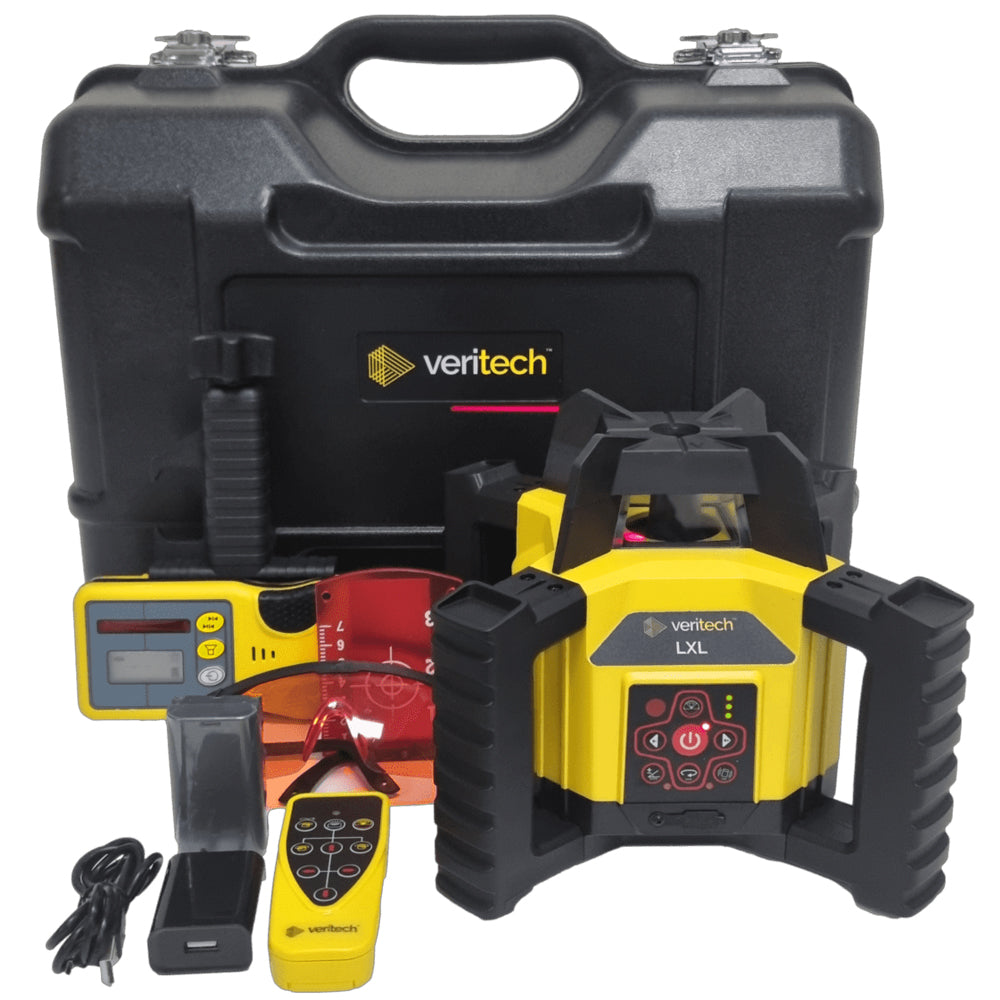

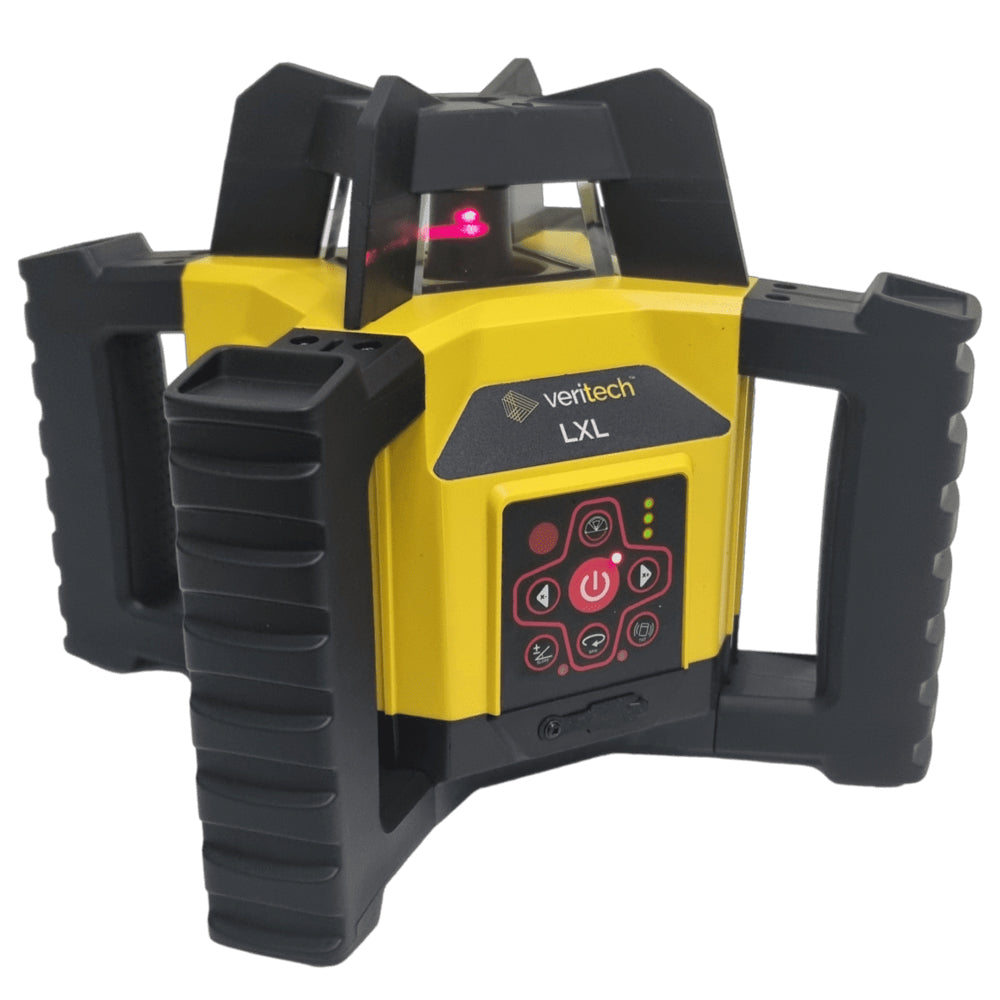

Veritech LXL Laser Level Kit

High precision electronic self-levelling laser level kit - comes calibrated with certificate from Level NZ workshop.

The LXL laser is easy to use and offers high accuracy and reliability. High quality design and construction and excellent impact resistance with metal top housing and x4 protective handles.

Horizontal and vertical self-levelling with plumb beam up & down.  Ideal for high precision levelling and set-outs.  Has scanning function for indoor use and manual slope input feature on dual axis.

SPECIFICATIONS

• Horizontal accuracy: +/- 1.5mm over 30 metres
• Vertical accuracy: +/- 3mm over 30 metres (+/20 arc seconds)
• Auto (self) levelling range: +/-5 degree (instrument will auto level on a surface within 5 degrees of true level)
• Measuring range: 300 metres diameter (using the supplied laser detector)
• Rotation speed: 0, 60, 300 & 600rpm
• Dual Grade range: +/-5 degree (in both X & Y axis)
• Laser Output: 635nm class II visible red laser diode
• Laser ground plumbing: Accuracy +/-1mm / 1.5m
• Remote Control range: 20m by IR
• Power supply: Rechargeable Battery
• Continuous operating: 30hrs approx.
• Working Temperature: -20 to +50 deg C
• Waterproof protection: IP54
• Instrument Dimensions: 200(L) x 150(W) x 184H (mm)
• Instrument weight: 2kg (with batteries)
• Robust & foam lined, carry case: 370 x 250 x 250(H) mm
• Kit gross weight: 4.6kg

INCLUDES

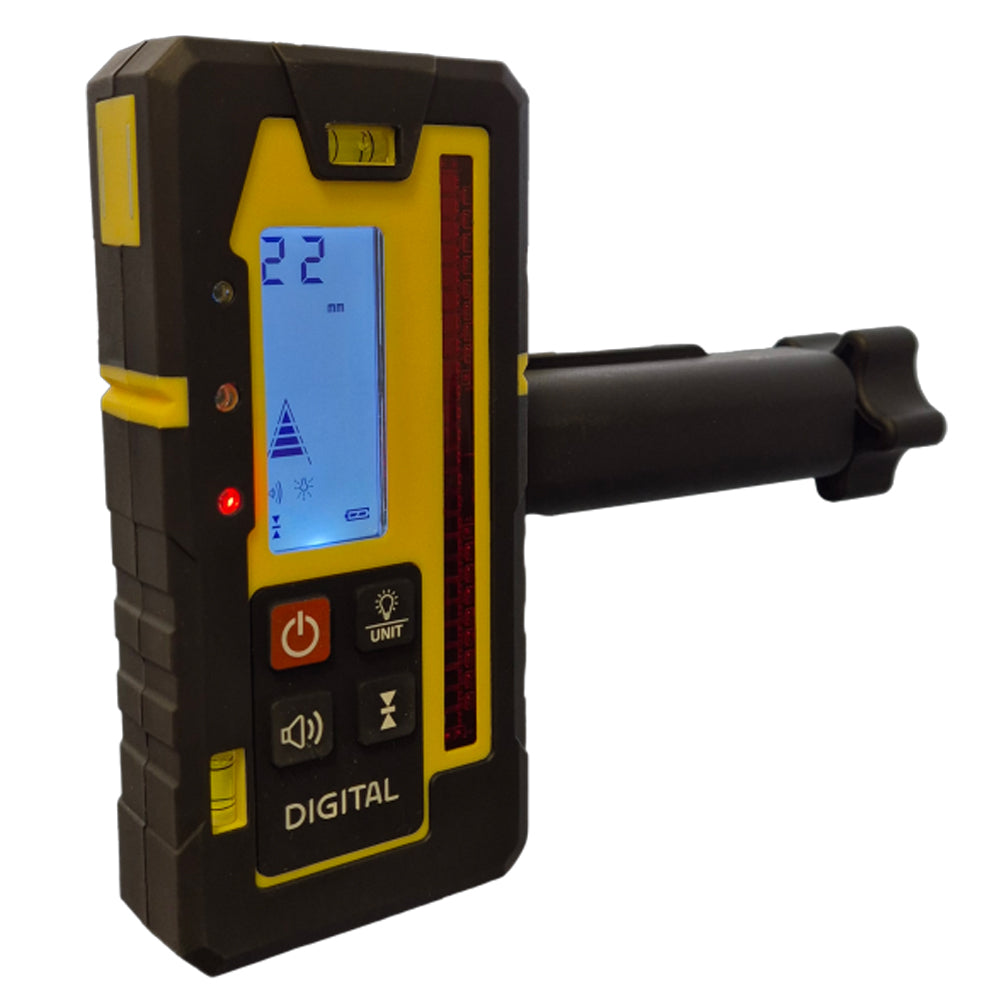

• Veritech millimetre readout Laser Receiver (VMMR)
• Remote Control
